Beam Detection System

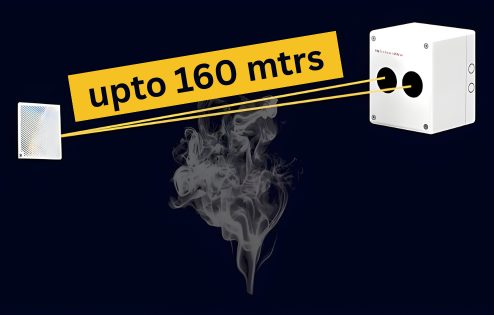

A Beam Smoke Detection System is a type of fire detection technology used to protect large open areas such as warehouses, auditoriums, atriums, and industrial buildings. It operates on the principle of light obscuration. An infrared or laser beam is transmitted across a protected space from a transmitter to a receiver, or reflected back using a reflector.

Under normal conditions, the receiver continuously monitors the strength of the light beam. When smoke from a fire enters the beam path, it causes partial obstruction and reduces the beam intensity. If this reduction exceeds a preset threshold, the system interprets it as the presence of smoke and sends a signal to the fire alarm control panel to activate an alarm.

Beam smoke detectors are especially suitable for high-ceiling areas where conventional point smoke detectors may be difficult to install or maintain. They offer wide area coverage, reduced installation cost, and easier maintenance, making them an effective solution for early fire detection in large spaces.
